Both YNS type and YNP type conductive silicone strips are double-layer conductive zebra strips, which add two layers of insulating silicone lining on both sides of the YN type to meet applications with demanding insulation requirements. The insulation lining of the YNS type is silicone (transparent), and the insulation lining of the YNP type is foamed silicone.

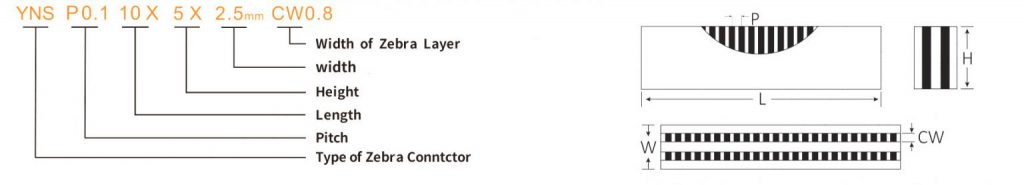

YNS type, YNP type conductive silicone strip naming convention
YNS type, YNP type conductive silicone strip naming convention

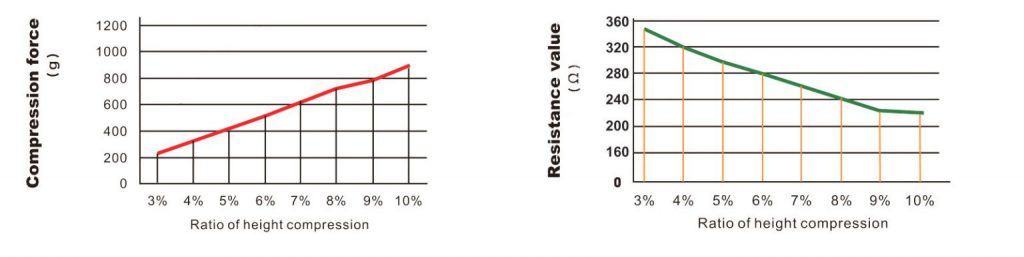

Structure and electrical performance data
Implementation standards：GB2439,GB/T528
| Conductive layer | Insulation layer | YNS Insulation layer | YNP Foaming Layer | ||
| Material | Conductive Rubber[Normal] | Conductive Rubber[Low Resistance] | Silicone Rubber | Silicone Rubber | Silicone Rubber |
| Hardness | 65±5A | 70±5A | 65±5A | 30±5A | 40±5A |
| Volume Resistivity | <6 Ω·cm | <3 Ω·cm | >1012 Ω·cm | >1012 Ω·cm | >1012 Ω·cm |
| Tensile Strength | >4mPa | >5mPa | >4mPa | >4mPa | >4mPa |
| Elongation | >100% | >150% | >100% | >300% | >300% |
| Tear Strength | >8N/mm | >12N/mm | >10N/mm | >12N/mm | >12N/mm |
| Color | Black | White | Transparent/White | Pink | |
Implementation standards
| Working Temperature | Humidity | Max.current |
| -50~150℃ | 85%（25℃） | 2.5mA/mm2 |
