Silicone Overmolded Waterproof Buttons for Rugged Electronic Devices

Product Overview

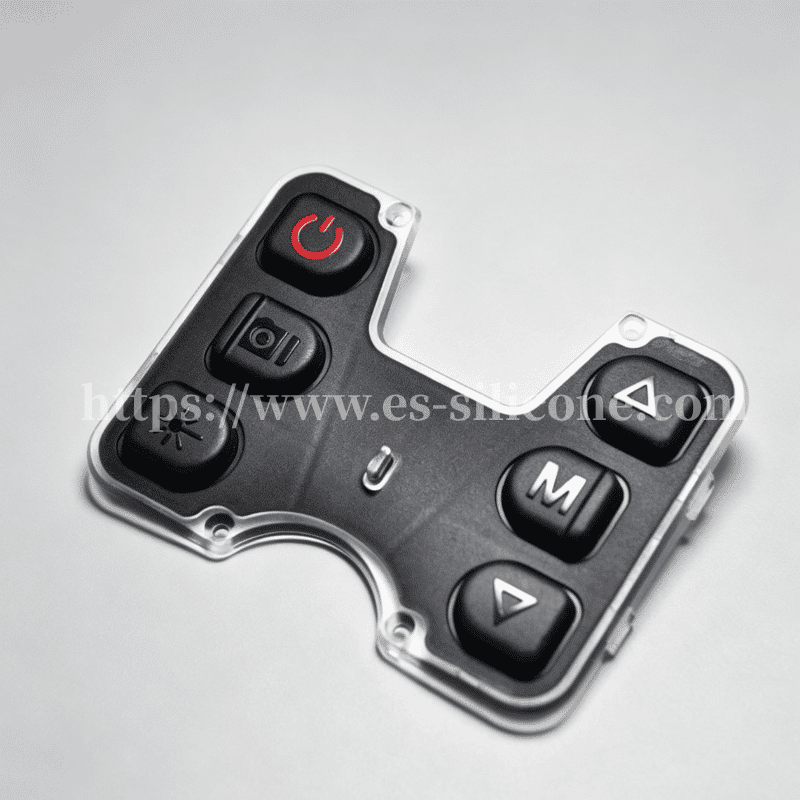

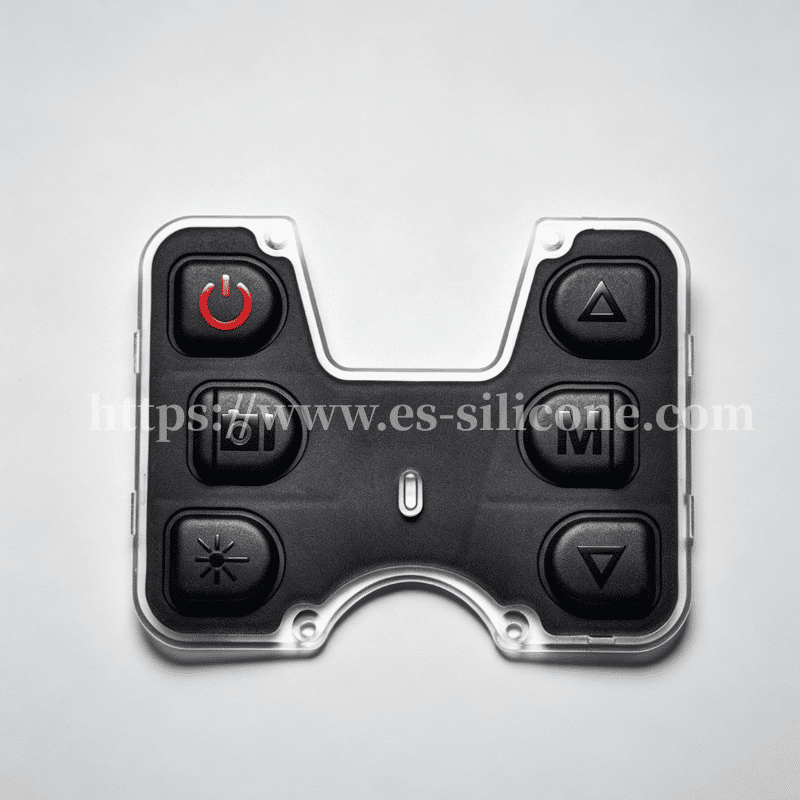

The Silicone Overmolded Waterproof Buttons are precision-engineered interface components designed for rugged electronic devices operating in demanding environmental conditions. Manufactured through advanced two-shot injection molding technology, the process seamlessly bonds a soft silicone layer over a rigid PC plastic substrate, creating an integrated waterproof and dustproof structure that achieves IP66-rated protection against powerful water jets and particulate ingress. This robust construction ensures reliable operation in extreme temperatures, high humidity, and harsh outdoor environments while providing excellent resistance to heat, wear, and mechanical impact.

The ergonomic keypad design incorporates raised tactile identifiers on every button surface, enabling users to locate and operate functions by touch alone—even in complete darkness. A bright red silk-screened power button allows for rapid visual identification during daily use, while transparent PC light pipe sections integrated into the keypad transmit underlying LED indicator status, providing real-time equipment operational feedback at a glance.

Core Advantages

1.Precision Two-Shot Overmolding for Seamless Waterproof Integration : Advanced two-shot injection molding technology bonds silicone and PC plastic in a single process, creating a unified structure without gaps or seams. This integrated construction delivers IP66-rated protection against water jets and dust ingress, ensuring reliable operation in challenging outdoor environments.

2. Raised Tactile Identifiers for Intuitive Blind Operation : All button surfaces feature raised tactile markings that allow users to identify and locate functions by touch alone. This human-centric design enables confident operation in complete darkness, low-visibility conditions, or situations where visual confirmation is impractical.

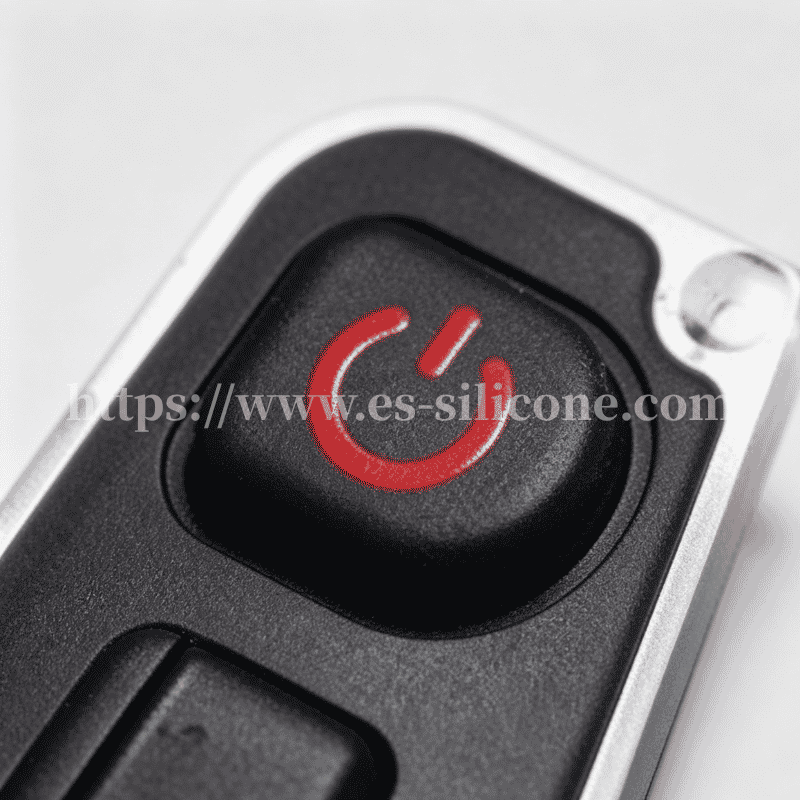

3.Red Silk-Screened Power Button for Rapid Visual Identification : A distinctive red silk-screened power button provides immediate visual recognition during routine use, allowing users to quickly locate the power function even in bright daylight or crowded equipment panels.

Application & Custom Service

1.Industry Compatibility:

Outdoor Optical Equipment: Infrared telescopes, night vision devices, rangefinders, and observation instruments requiring weather-resistant user interfaces

Industrial Electronics : Heavy-duty control panels, portable measurement instruments, and handheld testing equipment operating in demanding factory or field conditions

Consumer Electronics : Ruggedized handheld devices, outdoor navigation systems, and sports cameras exposed to water and dust

Healthcare Equipment : Portable diagnostic devices, emergency response equipment, and field medical devices requiring easy cleaning and contaminant resistance

2.Core Product Application Scenarios:

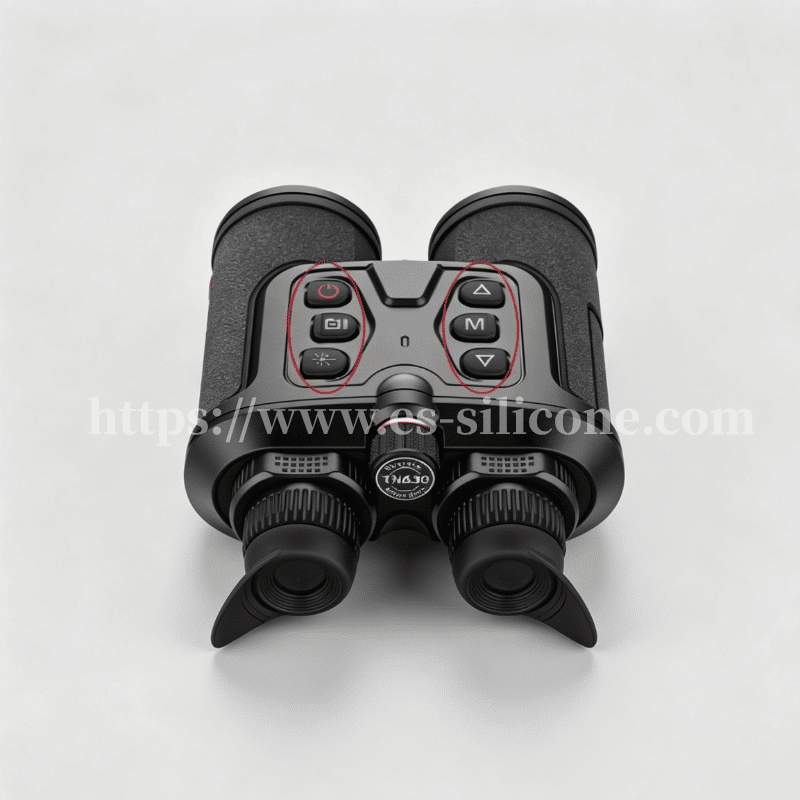

Infrared Telescope Controls for Night Operations : Raised tactile identifiers enable blind operation in darkness, while IP66-rated waterproofing ensures reliable performance in outdoor night observation environments

Industrial Measurement Instruments for Factory Use : Red silk-screened power button enables quick visual identification on crowded panels, with PC light pipes delivering clear equipment status feedback

Field Medical Devices for Emergency Response : Easy-to-clean silicone buttons resist contaminant accumulation, while raised tactile markings enable operation in low-visibility emergency situations

Customization & Ordering Information

1.Fully Customized Products: All ES Silicone products are custom-made based on customer requirements.

2.MOQ Requirements: MOQ varies by product category, structure, and production requirements. Typically, orders start from 100 pieces.

3.Prototype & Mass Production: We support prototype validation before mass production. Reasonable prototype fees apply and may be credited for qualified projects.

4.Engineering Support: Our engineering team provides DFM evaluation to optimize product feasibility and ensure stable production.

5.More Project Cases: Website examples represent selected non-confidential projects. Contact us for more customized applications and solutions.

6.Learn More About ES Silicone: Discover our capabilities and workflow through Who We Are and How We Work.
