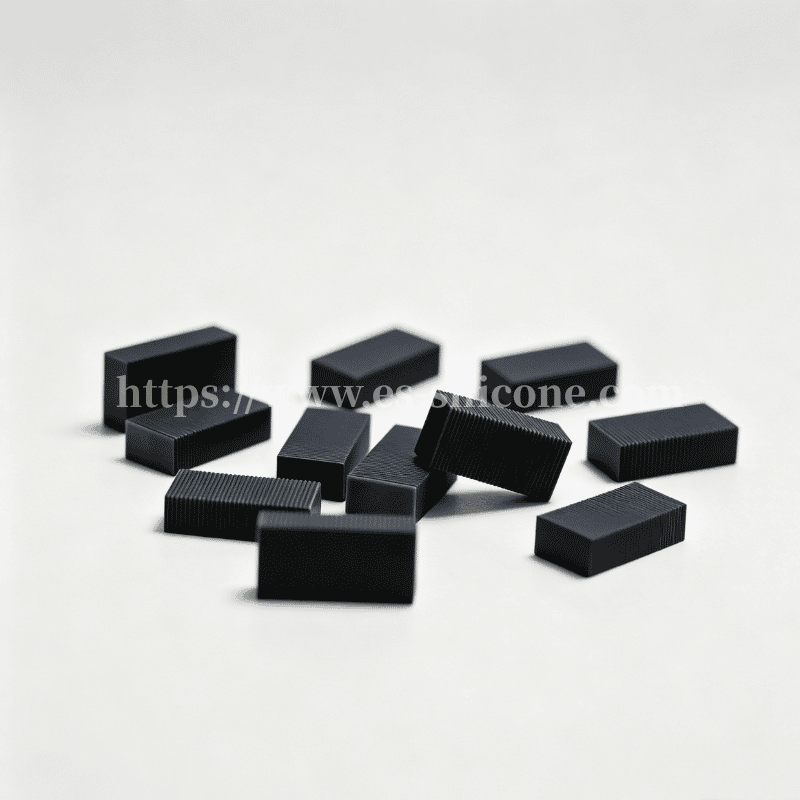

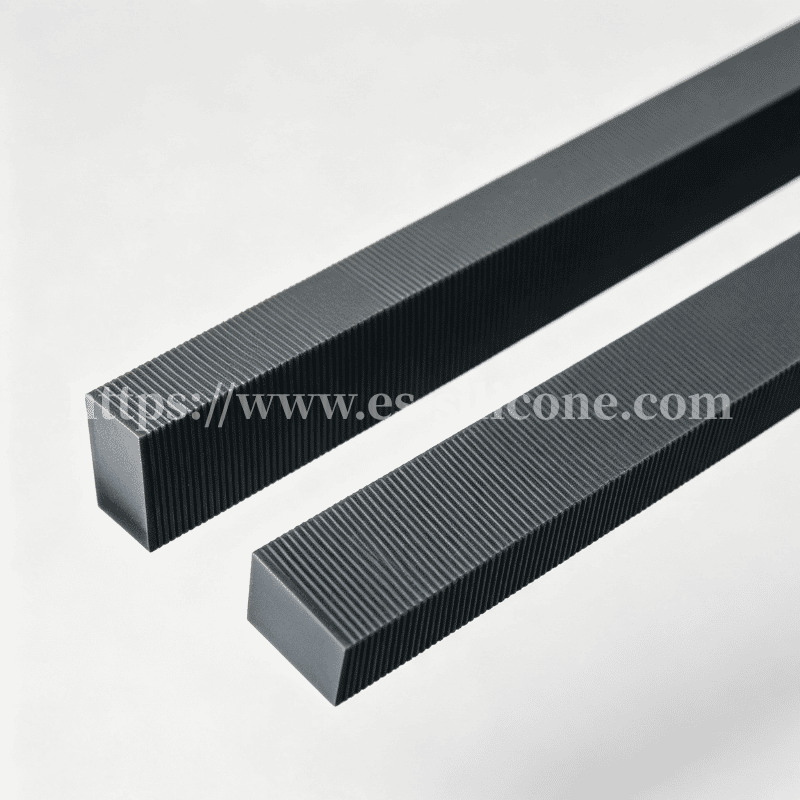

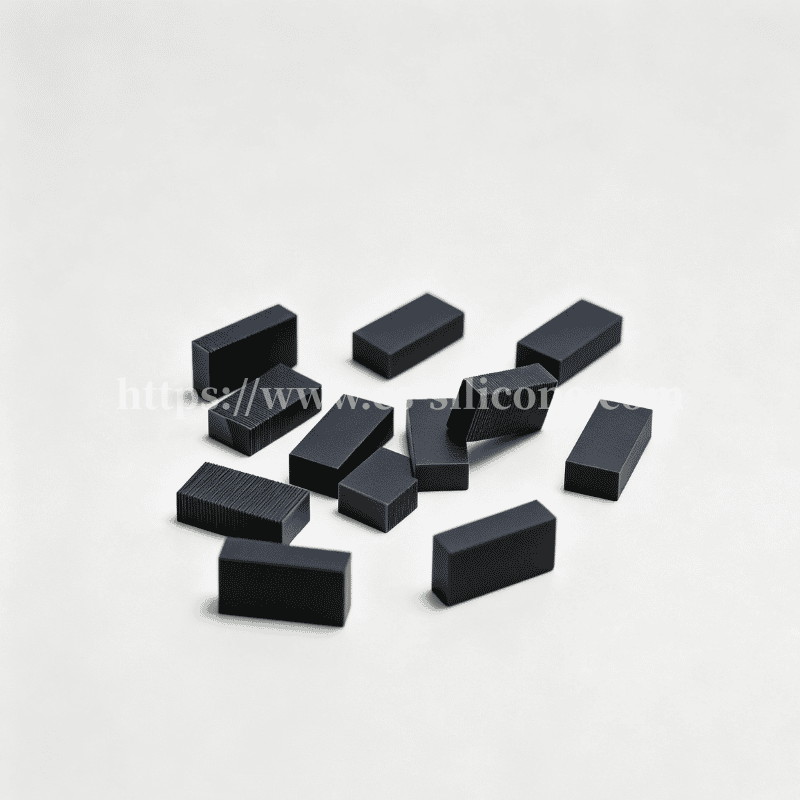

YL-type four-sided conductive silicone zebra strip

Product Overview

Most zebra strips conduct on two sides. The YL-type conducts on all four.It’s built from alternating layers of conductive and insulating silicone rubber, but the conductive layers wrap around — giving you contact capability on the top, bottom, and both lateral surfaces. This makes it a different animal altogether when your design needs multi-directional signal paths in a tight space.

The real headache it eliminates? Routing compromises. Engineers constantly wrestle with limited PCB real estate and awkward connector orientations. The YL strip lets you break free from two-sided thinking — you route where the design actually needs it, not where the connector forces you to go.Same refined silicone formulation. Same in-house mold discipline. Just one more dimension of conductivity.

Core Advantages

1. Four-Sided Conduction, One Clean Solution:Conductive layers run across all four surfaces — top, bottom, left, and right. This opens up vertical and lateral interconnection possibilities that standard two-sided strips simply cannot deliver. Fewer workarounds, fewer auxiliary connectors, cleaner assembly.

2. Rock-Solid Electrical Stability:Our conductive silicone compounding is dialed in for low, uniform contact resistance across all four conductive faces. Under thermal swing, humidity, or prolonged compression, the strip holds its electrical character — no drift, no dead spots, no field returns eating your margin.

3. Proven Reliability, Trusted by Industry Leaders:We’re the quiet, long-term partner behind several top-tier manufacturers in high-reliability sectors. Their repeat business is built on our refusal to cut corners on raw material sourcing and curing process control.

Application & Custom Service

1.Industry Compatibility:

Industrial Automation : HMI panels with edge-lit displays, field instruments with space-constrained PCB layouts

Medical Devices : multi-angle display modules, handheld diagnostic readers, compact patient monitor interconnects

Automotive Electronics :curved dashboard displays, steering wheel control modules, side-view camera monitor links

Consumer Electronics: wearable device displays, smart remote controls, portable measurement gadgets

Aerospace & Defense :cockpit instrument clusters, ruggedized handheld terminals, avionics display interfaces

2.Core Product Application Scenarios:

Multi-Directional PCB-to-LCD Interconnection: vertical and lateral contact paths in a single component, eliminating daughter boards

Space-Constrained Display Assemblies :edge-to-edge conduction where connector orientation is restricted or non-standard

Curved or Irregular Display Bonding :conformable silicone body adapts to non-flat mounting surfaces without signal loss

High-Density Multi-Point Contact Arrays :fine-pitch four-sided conduction for compact, high-signal-count designs

Customization & Ordering Information

1.Fully Customized Products: All ES Silicone products are custom-made based on customer requirements.

2.MOQ Requirements: MOQ varies by product category, structure, and production requirements. Typically, orders start from 100 pieces.

3.Prototype & Mass Production: We support prototype validation before mass production. Reasonable prototype fees apply and may be credited for qualified projects.

4.Engineering Support: Our engineering team provides DFM evaluation to optimize product feasibility and ensure stable production.

5.More Project Cases: Website examples represent selected non-confidential projects. Contact us for more customized applications and solutions.

6.Learn More About ES Silicone: Discover our capabilities and workflow through Who We Are and How We Work.
