YP Type Conductive Rubber Connector

Yp Type Conductive Rubber Connector

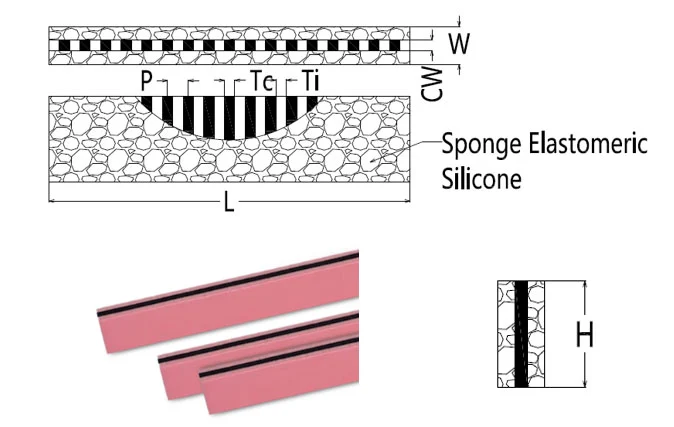

YP type Zebra Connectors are supported by a sponge foamed insulating silicone layer on both sides of the zebra layer to meet more applications where insulation is critical. At the same time, the foam layer is very soft, so in practical applications only a small compressive force is required to achieve good contact performance.

Zebra Connectors Naming Conventions

To ensure that zebra connectors are made correctly, the naming specifications are as follows:

Yp Type Conductive Rubber Connector

Preload relationship and curve

The superior elasticity of conductive rubber connectors can effectively avoid the risk of good contact with components due to aging deformation and accidental drop of structural parts during the use of electronic equipment, but with the deformation of structural parts and the change of compression force, the compression ratio and resistance of conductive rubber connectors will also change, and it is necessary to fully consider when setting structural parts and conductive rubber connectors. As follows:

Spline: YP P0.1 10×5×2.5mm CW0.8

Yp Type Conductive Rubber Connector

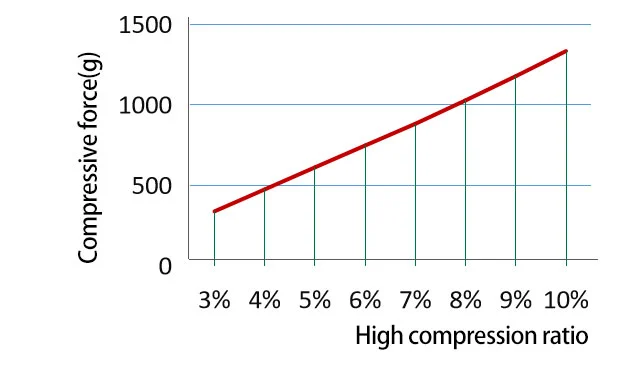

Relationship between compressive force and compression ratio

Yp Type Conductive Rubber Connector

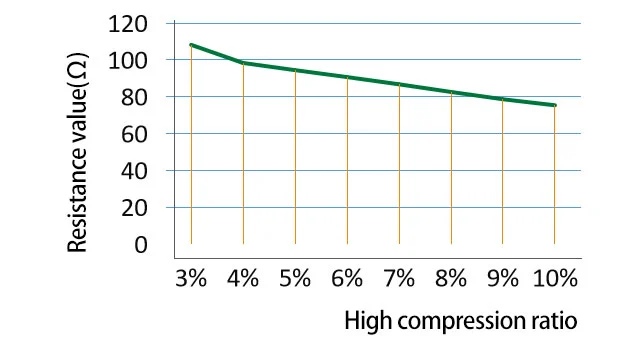

Resistance vs. compression ratio

The calculation of conductive rubber connector resistance can be referenced by the following formula:

Yp Type Conductive Rubber Connector

R = Resistance value (Ω)
CW = Conductive width (mm)
L = Conductive length (mm)
H = Conductive height (mm)
ρ = volume resistivity (Ω·cm)

The testing process should be maintained > 10% compression ratio to obtain accurate test results.

The calculation of the compressive force of a conductive rubber connector can be calculated by reference to the following formula:

Yp Type Conductive Rubber Connector

F = Press pressure (g)
D = Compression ratio D = (H-H1) ÷ H
E0 = Zebra layer modulus of elasticity 3.5MPa
E1 = Modulus of elasticity of the insulation liner 1.7MPa
H = Conductive rubber connector height (mm)
W = Conductive rubber connector width (mm)
CW = Zebra Layer Width (mm)
W1 = Insulation liner width (mm) W2 = W-W1
L = Conductive rubber connector length (mm)

Structure and electrical performance data

Implementation standard: GB2439, GB/T528

Project Specification values
Material Conductive layer Insulation layer Foam lining
Conductive silicone rubber Silastic Silastic
Routine Low resistance Routine Routine
Hardness(A) 65±5 70±5 65±5 40±5
Volume resistivity(Ω·cm) <6 <3 >1012 >1012
Tensile strength(mPa) >4 >5 >4 >4
Elongation(%) >100 >150 >100 >300
Tear strength(N/mm) >8 >12 >10 >12
Color Black White Pink

Work environment data

Operating temperature Operating humidity(%)25℃ Maximum operating current (mA/mm2)
Minimum Maximum
-50 150 85 2.5
