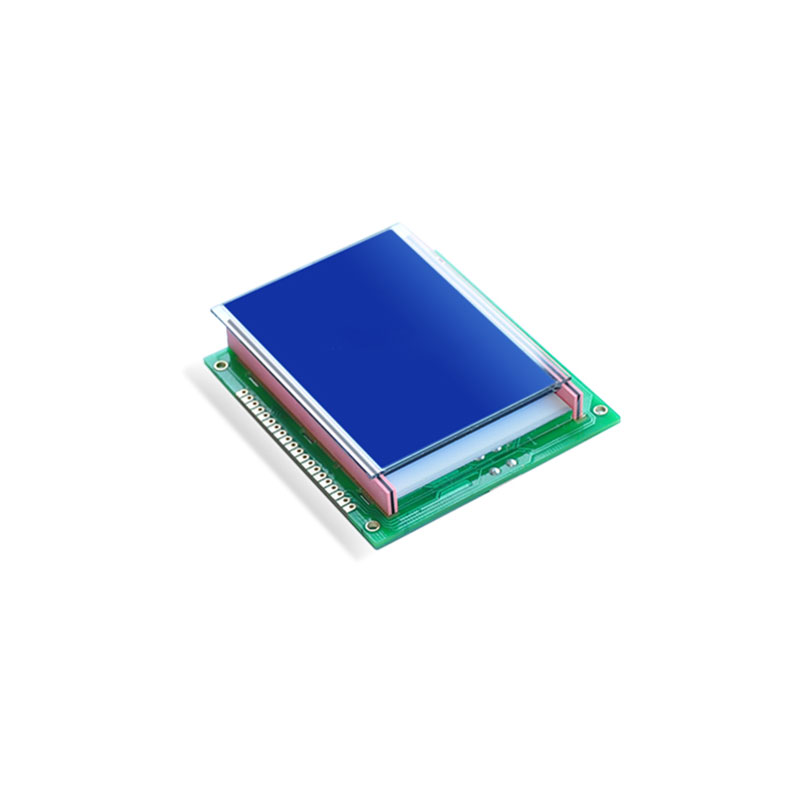

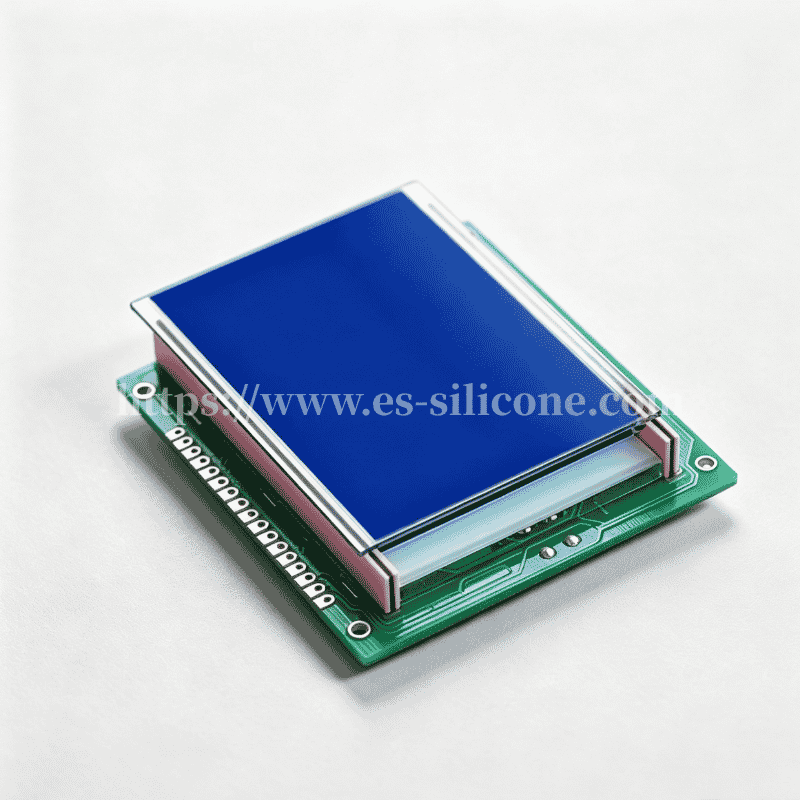

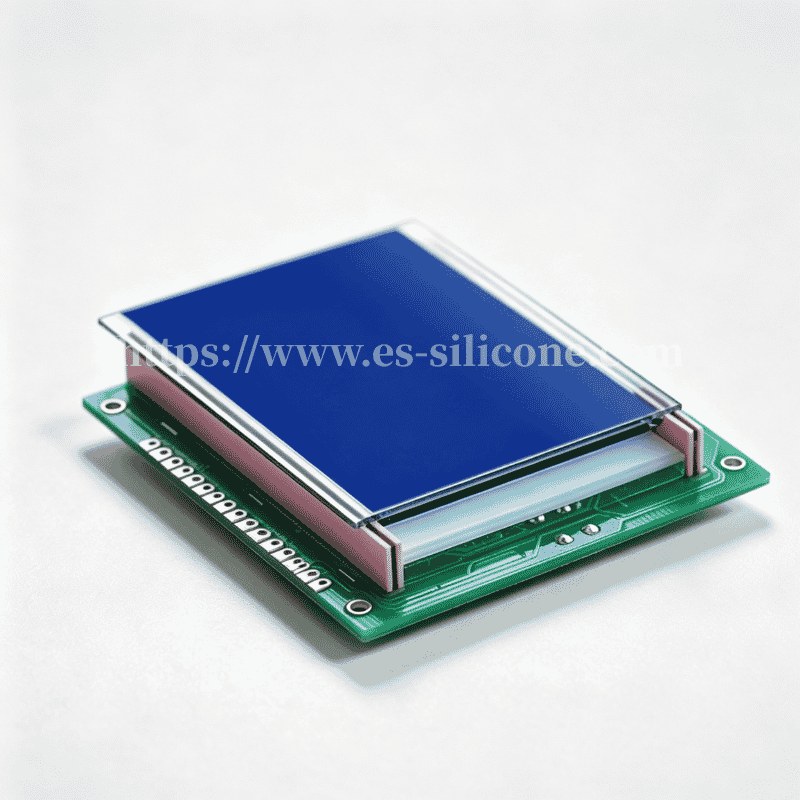

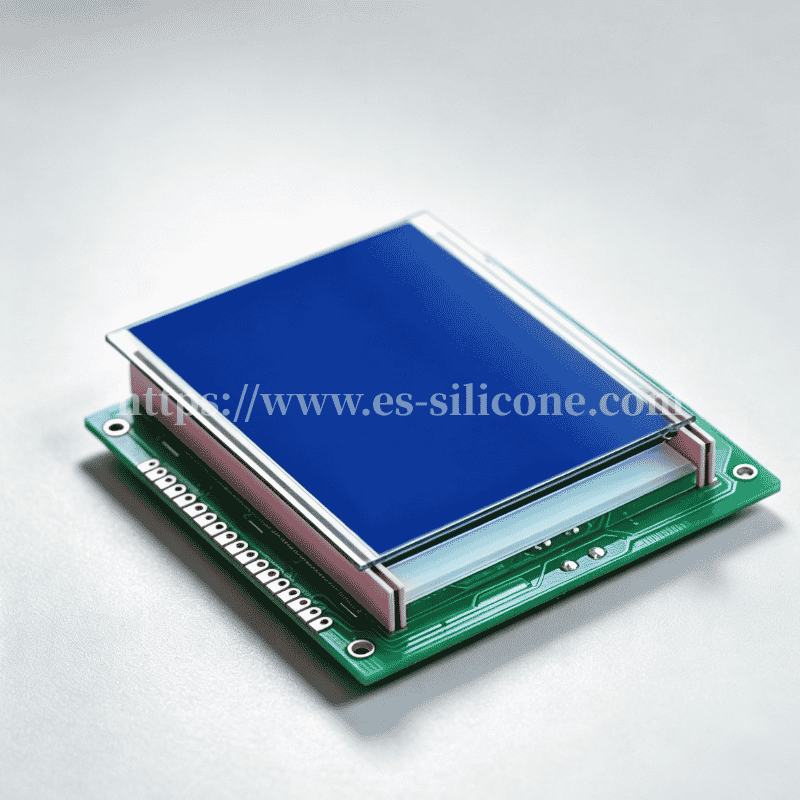

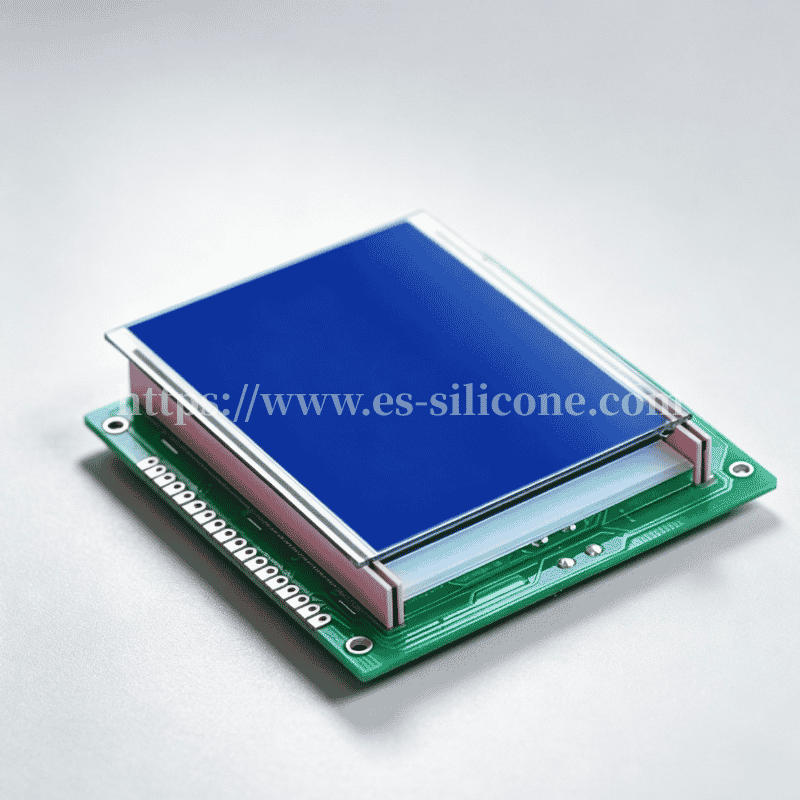

Zebra Strip LCD Signal Conduction — Multi-Layer Conductive Silicone Interconnect

Product Overview

Our conductive interconnects — zebra strips, elastomeric connectors, and custom silicone contact elements — are the quiet bridge that keeps those signals clean. Built from precision-layered conductive and insulating silicone rubber, each component is engineered for one thing: making sure every pixel gets its voltage without drift, flicker, or dropout over years of service.

The headache we solve for engineers is a familiar one. Off-the-shelf connectors force design compromises in pin pitch, stack height, and contact orientation. Then thermal cycling creeps in and resistance starts wandering. We replace that gamble with something deliberate — custom-molded, batch-consistent interconnects that fit your display geometry from day one.

Core Advantages

1. Conductivity That Stays Put:Our conductive silicone compounding is tuned for ultra-low, uniform contact resistance that holds steady under thermal swing, humidity, and prolonged compression. No creeping resistance. No ghost segments on the display. Just clean signal transmission from prototype through end-of-life.

2. One Strip, Multiple Signal Directions:Need two-sided conduction? Four-sided? Vertical plus lateral paths in a single component? We engineer the conductive layer orientation to match your routing constraints — fewer auxiliary connectors, cleaner board layouts, simpler BOMs.

3. One Partner, Multiple Interconnect Technologies:Zebra strips are our backbone, but we don't stop there. We also engineer and supply silicone keypads, conductive rubber contacts, and custom elastomeric connectors — all under the same in-house mold-making and compounding roof. If your LCD display module needs more than just a signal bridge, we're already tooled up to deliver the full set without juggling multiple vendors.

Application & Custom Service

1.Industry Compatibility:

Medical Devices : patient monitor LCD modules, handheld diagnostic displays, portable ultrasound screen interconnects

Automotive Electronics: dashboard instrument cluster displays, climate control LCD panels, head-up display signal links

Industrial Instrumentation: field meter readout screens, HMI touch display interconnects, process control LCD modules

Consumer Electronics :remote control displays, smart home thermostat screens, handheld gaming device LCD links

Telecommunications :network equipment status displays, cordless phone LCD modules, base station monitoring screens

2.Core Product Application Scenarios:

LCD-to-PCB Direct Interconnection : solderless contact bridging with low-profile stack height for slim device assemblies

FPC-to-Glass Signal Routing: fine-pitch elastomeric contact for flexible circuit termination on display glass edges

Multi-Directional Display Contact Arrays : two-sided and four-sided conduction options for complex routing geometries

Curved or Irregular Display Module Bonding : conformable silicone body adapts to non-flat mounting surfaces without signal degradation

Customization & Ordering Information

1.Fully Customized Products: All ES Silicone products are custom-made based on customer requirements.

2.MOQ Requirements: MOQ varies by product category, structure, and production requirements. Typically, orders start from 100 pieces.

3.Prototype & Mass Production: We support prototype validation before mass production. Reasonable prototype fees apply and may be credited for qualified projects.

4.Engineering Support: Our engineering team provides DFM evaluation to optimize product feasibility and ensure stable production.

5.More Project Cases: Website examples represent selected non-confidential projects. Contact us for more customized applications and solutions.

6.Learn More About ES Silicone: Discover our capabilities and workflow through Who We Are and How We Work.
