Patented Conductive Silicone Zebra Strip with Multi-Layer Composite Structure

Product Overview

Multi-layer conductive rubber connectors are a series of new conductive rubber connectors developed and produced by ES.Unlike conventional conductive rubber connectors with only one conductive zebra layer, the new conductive rubber connectors can have 2, 3 or even more layers of conductive zebra layer to meet the needs of new electronic equipment multi-redundant circuit design, mainly used in electronic equipment tamper-proof protection, circuit connection between PCBs.

At present, multi-layer conductive rubber connector technology, ES has been authorized by the national new patent technology, we have developed YN type, YNS type, YNP type, YM type and other models of multi-layer conductive connectors have been successfully mass production, for a number of customers to solve the problem of multi-redundant circuit design.

Core Advantages

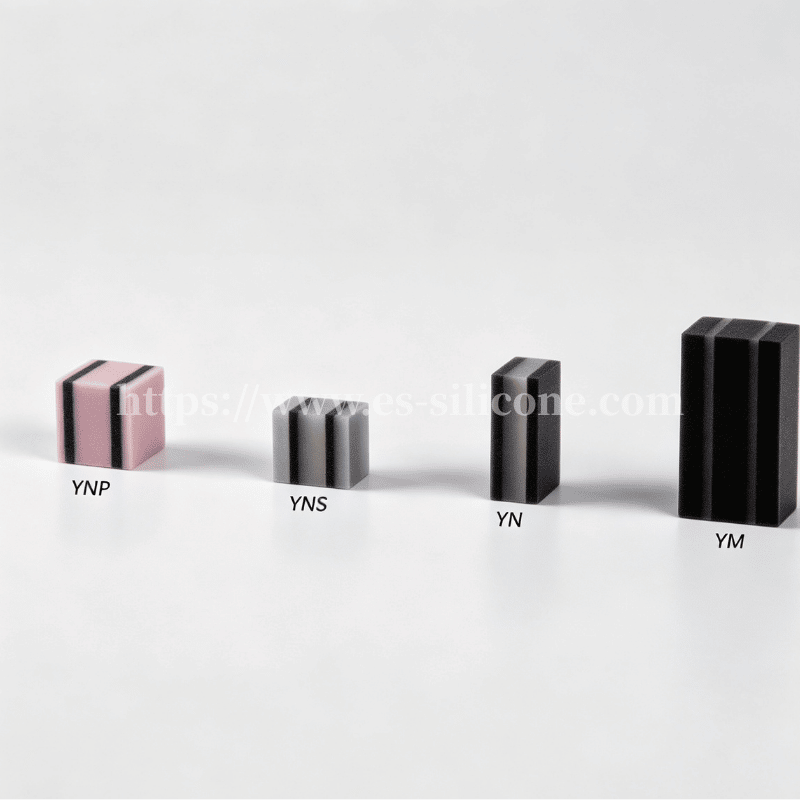

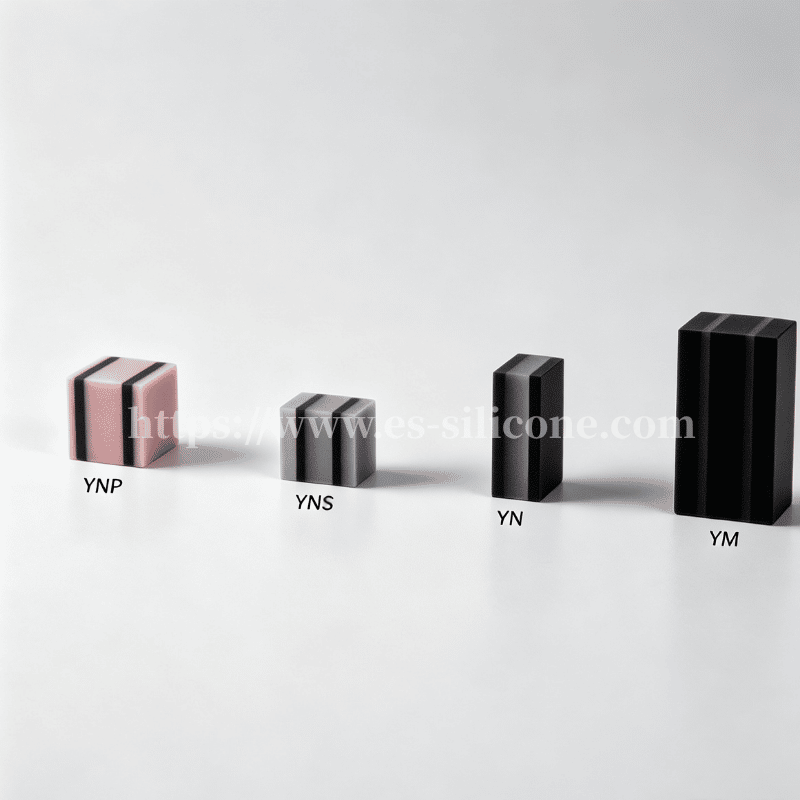

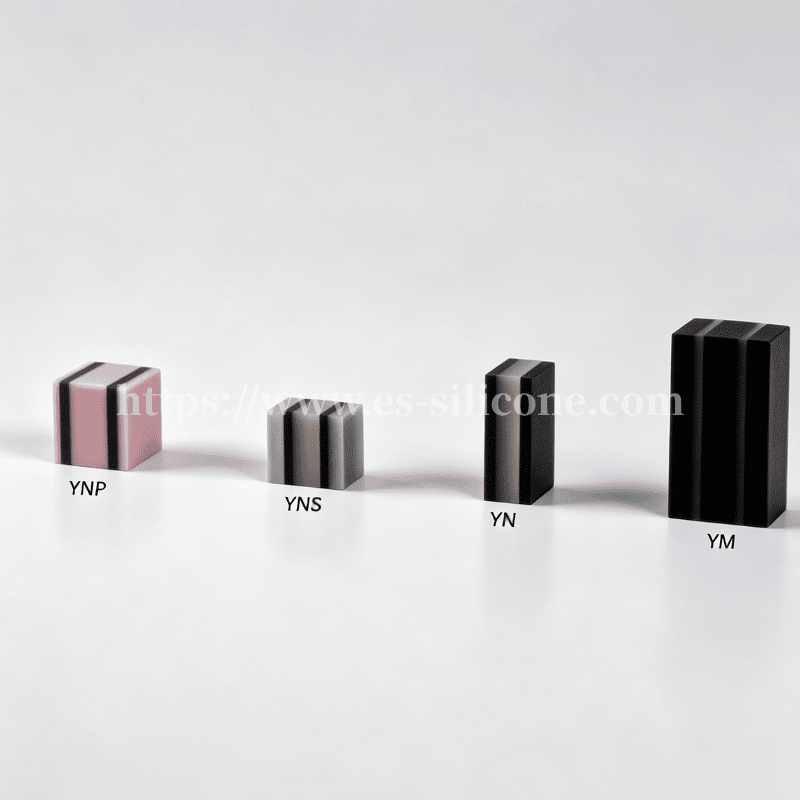

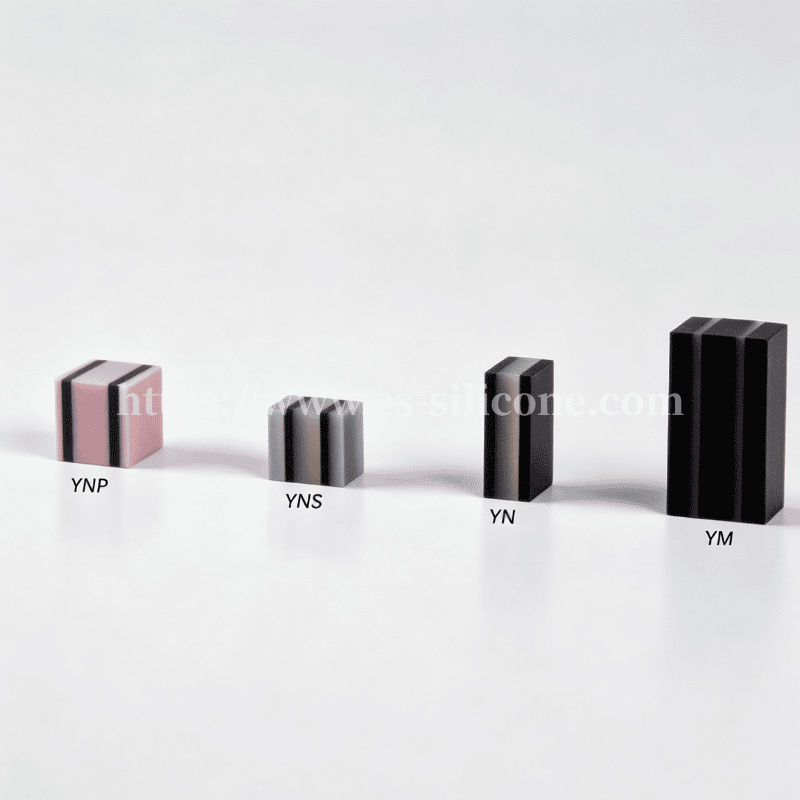

1. Four Platforms, One Engineering Partner:YNP, YNS, YN, YM — four distinct zebra strip architectures covering two-sided, four-sided, ultra-fine pitch, and cross-grid isolated conduction. You don't adapt your design to a limited catalog. You pick the platform that fits your signal routing challenge, and we custom-mold from there.

2. Chinese National Patents, Verified Quality:Our conductive zebra strip technologies are protected by Chinese national patents — formal recognition of the R&D and process innovation behind our compounding, molding, and quality control. For procurement teams, that means a supplier credential that checks out under audit.

3. In-House Mold Fabrication, True Custom Output:Shape, color, dimensions, pitch, hardness — we don't outsource tooling and we don't push stock shapes. Our mold shop cuts to your spec, samples ship fast, and iteration cycles stay short. Non-standard is our standard.

Application & Custom Service

1.Industry Compatibility:

Medical Imaging & Diagnostics : ultrasound display modules, patient monitor LCD arrays, portable diagnostic instrument readouts

Industrial Precision Instruments :digital caliper readouts, multi-channel measurement displays, process control HMI panels

Automotive Electronics :curved dashboard displays, steering wheel control modules, side-view camera monitor links

Consumer Electronics: wearable device displays, smart remote controls, portable measurement gadgets

Aerospace & Defense :cockpit instrument clusters, ruggedized handheld terminals, avionics display interfaces

2.Core Product Application Scenarios:

Multi-Directional PCB-to-LCD Interconnection: vertical and lateral contact paths in a single component, eliminating daughter boards

Space-Constrained Display Assemblies :edge-to-edge conduction where connector orientation is restricted or non-standard

Curved or Irregular Display Bonding :conformable silicone body adapts to non-flat mounting surfaces without signal loss

High-Density Multi-Segment Display Contact : fine-pitch and cross-grid architectures for crosstalk-free multi-channel designs

Customization & Ordering Information

1.Fully Customized Products: All ES Silicone products are custom-made based on customer requirements.

2.MOQ Requirements: MOQ varies by product category, structure, and production requirements. Typically, orders start from 100 pieces.

3.Prototype & Mass Production: We support prototype validation before mass production. Reasonable prototype fees apply and may be credited for qualified projects.

4.Engineering Support: Our engineering team provides DFM evaluation to optimize product feasibility and ensure stable production.

5.More Project Cases: Website examples represent selected non-confidential projects. Contact us for more customized applications and solutions.

6.Learn More About ES Silicone: Discover our capabilities and workflow through Who We Are and How We Work.
