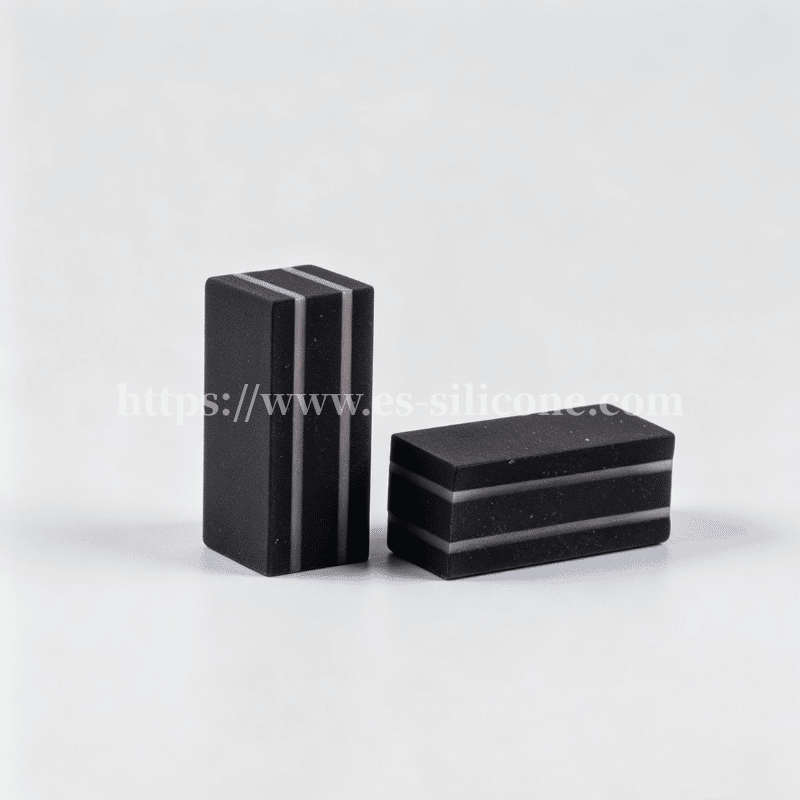

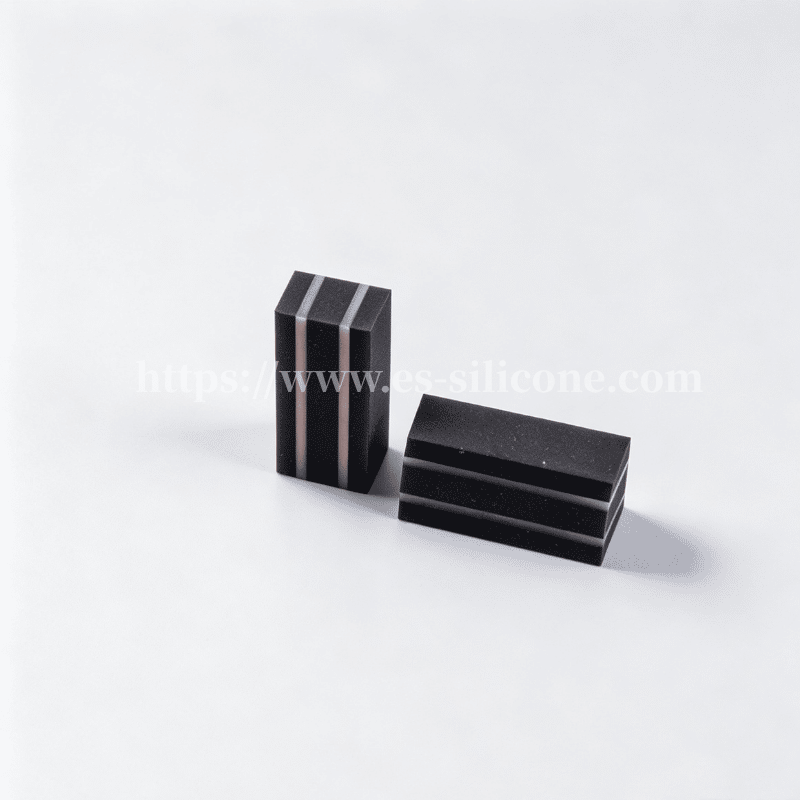

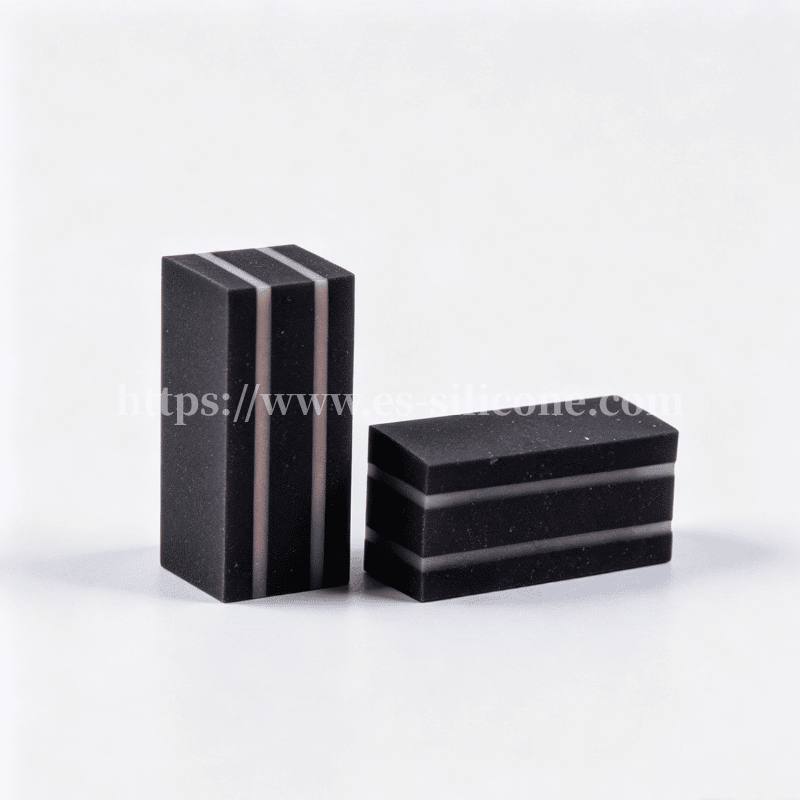

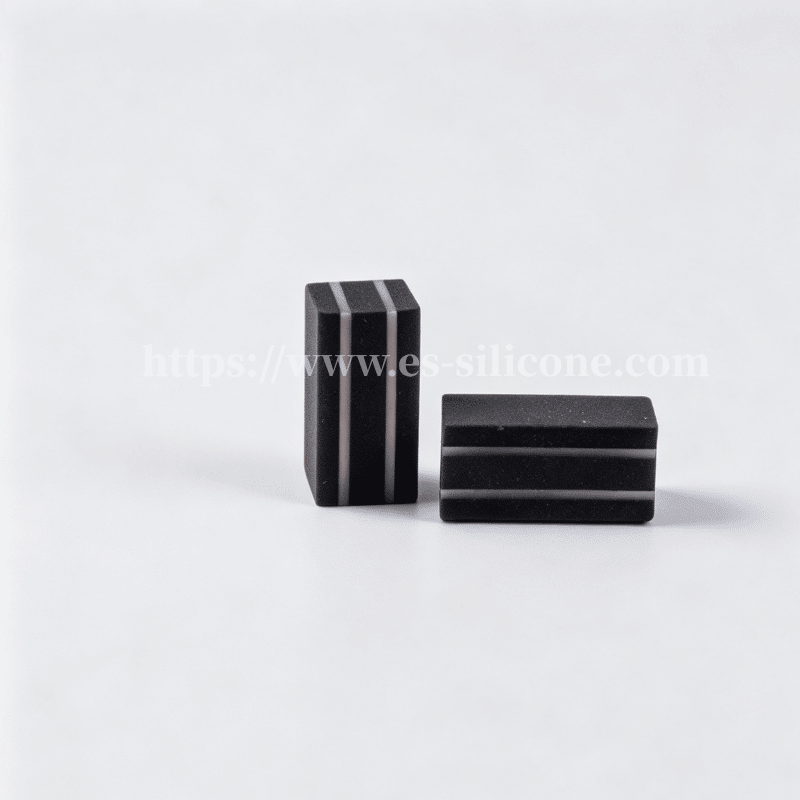

Three-layer structured conductive silicone zebra strip

Product Overview

This is the kind of connector you reach for when standard strips just won't fit. The YM-type zebra strip packs three conductive layers into a custom-shaped silicone body to meet the design of multi-redundant circuits.

We make these ourselves, with our own molds and our own patents. The core materials? High-performance conductive silicone and insulating silicone, layered with precision. The result is a connector that handles the electrical demands while surviving the physical ones — compression, vibration, temperature swings.

Core Advantages

1. Conductivity and stability that hold up over time: The three-layer design gives you consistent, low-resistance contact even when surfaces aren't perfectly aligned. We formulate our own conductive silicone in-house, which means tighter quality control on resistance values and better zebra strip performance across production batches. Long-term partners in high-end electronics stick with us because batch-to-batch consistency is baked into the process.

2. Proven supplier to major industry players: We're not chasing one-off orders. We're the steady OEM conductive zebra strip supplier behind some well-known brands in instrumentation, metering, and medical devices. The fact that they haven't switched suppliers in years says more than any spec sheet could.

3. True custom manufacturing, not just a catalog order: We operate our own molding workshop and hold multiple China-granted patents related to zebra strip production. Whatever shape, size, color, or durometer your design calls for, we build the tooling to match — not the other way around. Custom zebra strip, non-standard zebra connector, special-shaped conductive strip — these aren't special requests here, they're daily work.

Application & Custom Service

1.Industry Compatibility:

Medical Imaging & Diagnostics : ultrasound display modules, patient monitor LCD arrays, portable diagnostic instrument readouts

Industrial Precision Instruments :digital caliper readouts, multi-channel measurement displays, process control HMI panels

Automotive Electronics :curved dashboard displays, steering wheel control modules, side-view camera monitor links

Consumer Electronics: wearable device displays, smart remote controls, portable measurement gadgets

Aerospace & Defense :cockpit instrument clusters, ruggedized handheld terminals, avionics display interfaces

2.Core Product Application Scenarios:

Multi-Directional PCB-to-LCD Interconnection: vertical and lateral contact paths in a single component, eliminating daughter boards

Space-Constrained Display Assemblies :edge-to-edge conduction where connector orientation is restricted or non-standard

Curved or Irregular Display Bonding :conformable silicone body adapts to non-flat mounting surfaces without signal loss

High-Density Multi-Point Contact Arrays :fine-pitch four-sided conduction for compact, high-signal-count designs

Customization & Ordering Information

1.Fully Customized Products: All ES Silicone products are custom-made based on customer requirements.

2.MOQ Requirements: MOQ varies by product category, structure, and production requirements. Typically, orders start from 100 pieces.

3.Prototype & Mass Production: We support prototype validation before mass production. Reasonable prototype fees apply and may be credited for qualified projects.

4.Engineering Support: Our engineering team provides DFM evaluation to optimize product feasibility and ensure stable production.

5.More Project Cases: Website examples represent selected non-confidential projects. Contact us for more customized applications and solutions.

6.Learn More About ES Silicone: Discover our capabilities and workflow through Who We Are and How We Work.
